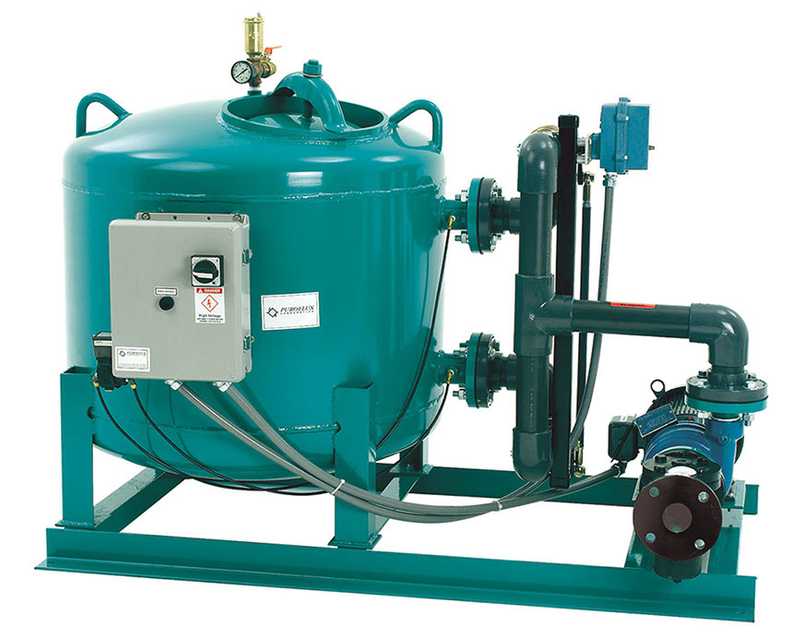

PF-30 Series

DESIGNED FOR HIGH PRESSURE APPLICATIONS - 100 PSI

Details

  • Available in flow rates of 15, 35, 65, 100, 140, 190 and 250 GPM.
  • Positive filtration down to 10 micron (lower micron media available).
  • Fusion bonded epoxy lined/polyester coated carbon steel vessel rated at 100 psi (optional higher pressure ratings and ASME code stamp available).
  • Industrial grade brass 3-way ball valves and Sch. 80 PVC face piping (model PF-3036, PF-3042, and PF-3048 equipped with cast iron butterfly valves).
  • Close coupled, end suction centrifugal pump & TEFC motor with CI pre-strainer & SST basket.
  • Skid – fusion bonded polyester coated carbon steel.
  • Automatic option includes: UL labeled NEMA 4X control cabinet, door disconnect switch, motor short circuit/overload protection, electric actuator, step-down transformer, pressure differential switch, adjustable solid state timer and 24 hr. backwash clock.

PF-30 Series DatasheetDOWNLOAD

Operation & Maint. ManualDOWNLOAD

Sample Spec. SheetDOWNLOAD

Select a Model

View product summary

PF-3012
  • Flow Rate: 15 GPM
  • Filtration Area: 0.78 Sq. Ft.
  • Valve Size: 1.0 Inches
  • Motor: 1.0 HP
  • Dimensions: 36"x41"x27"
  • Weight, lbs: 400 (shipping) 450 (operation)
BACKWASH (Submittal Sheets)
  • Flow Rate: 35 GPM
  • Filtration Area: 1.77 Sq. Ft.
  • Valve Size: 1.5 Inches
  • Motor: 1.5 HP
  • Dimensions: 42"x41"x32"
  • Weight, lbs: 600 (shipping) 760 (operation)
BACKWASH (Submittal Sheets)
  • Flow Rate: 65 GPM
  • Filtration Area: 3.14 Sq. Ft.
  • Valve Size: 1.5 Inches
  • Motor: 2.0 HP
  • Dimensions: 49"x42"x35"
  • Weight, lbs: 930 (shipping) 1190 (operation)
BACKWASH (Submittal Sheets)
  • Flow Rate: 100 GPM
  • Filtration Area: 4.91 Sq. Ft.
  • Valve Size: 2.0 Inches
  • Motor: 3.0 HP
  • Dimensions: 56"x43"x40"
  • Weight, lbs: 1120 (shipping) 1470 (operation)
BACKWASH (Submittal Sheets)
  • Flow Rate: 140 GPM
  • Filtration Area: 7.10Sq. Ft.
  • Valve Size: 2.5 Inches
  • Motor: 5.0 HP
  • Dimensions: 66"x48"x48"
  • Weight, lbs: 1750 (shipping) 2290 (operation)
BACKWASH (Submittal Sheets)
  • Flow Rate: 190 GPM
  • Filtration Area: 9.60Sq. Ft.
  • Valve Size: 3.0 Inches
  • Motor: 5.0 HP
  • Dimensions: 74"x50"x52"
  • Weight, lbs: 2400 (shipping) 3110 (operation)
BACKWASH (Submittal Sheets)
  • Flow Rate: 250 GPM
  • Filtration Area: 12.60Sq. Ft.
  • Valve Size: 4.0 Inches
  • Motor: 5.0 HP
  • Dimensions: 94"x71"x59"
  • Weight, lbs: Consult Factory
BACKWASH (Submittal Sheets)

* Dimensions are approximate
Consult factory for higher flow rate packages
